Standard Nylon Cable Glands | Metric, PG, NPT & BSP/G
PA66 nylon cable glands for electrical panels and industrial enclosures, available in Metric, PG, NPT and BSP/G threads.
Standard sealing: IP55 without a flat gasket; IP68 with the specified sealing washer and correct installation.
Nylon Cable Glands by Thread Type
Choose Metric, PG, NPT or BSP/G to match your enclosure entry. Open the corresponding product below to check cable clamping ranges and dimensions before ordering.
Standard Nylon Cable Glands for Bulk Orders
CHSOCN supplies PA66 nylon cable glands in Metric, PG, NPT and BSP/G threads for electrical panels and industrial enclosures. Choose the thread to match the enclosure entry and the clamping range to match the cable outside diameter.
For a quotation, list each size, colour and quantity, and confirm whether locknuts and sealing washers are required. Drawings, samples and packaging options are available on request.
Standard Nylon Cable Gland Applications
For cable entry in automation cabinets and machinery enclosures. Check cable movement, strain-relief requirements and the selected model’s clamping range before installation.
For outdoor or renewable energy installations, select the material grade and sealing configuration for the enclosure requirements. Standard nylon glands provide IP55 without a flat gasket and IP68 with the specified flat gasket, sealing insert and correct installation. Confirm the selected model and applicable test conditions.
For cable entry into telecommunications enclosures. Standard nylon provides IP55 without a flat gasket and IP68 with the specified flat gasket and correct installation. Immersion requirements must be checked against the selected model’s documented test conditions.
For coastal or shipboard projects, confirm the required approvals, exposure conditions, material suitability and enclosure sealing before selecting a model. Suitability must be checked for the specific installation.
Nylon Cable Glands Features
Metric, PG, NPT and BSP/G versions are available. Match the thread standard and size to the enclosure entry; similar-looking threads are not interchangeable.
PA66 nylon body. Confirm the material grade and required flammability classification for your selected model. Request the applicable material information when preparing a purchasing specification.
Standard nylon cable glands provide IP55 protection without a flat gasket, or IP68 with the specified flat gasket, sealing insert and correct installation. Premium uses upgraded materials for better mechanical performance and longer service life under comparable conditions, and includes a flat gasket as standard.
BSP/G versions are available for matching parallel-thread enclosure entries. Confirm the nominal thread size, cable range and sealing components against the drawing.
List the sizes, colours and quantities required for your order. We confirm packaging options, supplied components and lead time with the quotation.
Nylon Cable Gland: Frequently Asked Questions & Selection Guide
Match the thread to the enclosure specification or approved drawing. Confirm the thread standard, size and pitch rather than selecting by destination country alone. Metric, PG, NPT and BSP/G threads are not interchangeable.
If the existing thread is unknown, provide its measurements and photographs for checking. The thread outside diameter alone is not sufficient to identify every thread type. See the thread selection guide.
Standard nylon cable glands provide IP55 without a flat gasket and IP68 with the specified flat gasket, sealing insert and correct installation. Specify the gasket when ordering and confirm the applicable test conditions for your model. Premium includes a flat gasket as standard and uses upgraded materials.
The body is PA66 nylon. Confirm the required material grade and UL 94 flammability classification with your quotation. Material flammability classification does not mean that the complete cable gland is UL Recognized.
For outdoor or chemical exposure, specify the temperature, sunlight exposure and chemicals involved so that model suitability can be checked.
Measure the cable outside diameter and select a model whose clamping range covers it. Check the enclosure entry and specify the appropriate flat gasket for IP68. Without the gasket, protection is IP55. Follow the selected model’s installation instructions and avoid over-tightening.
For Premium, the flat gasket is included as standard. UL Recognized nylon is a separate model-specific range made with a Yellow Card nylon material grade.
Specify the colour or RAL reference, quantity and any branding requirements in your inquiry. We will confirm available colours, minimum quantities and lead time with the quotation. Colour alone does not establish suitability or approval for a hazardous-area application.
Thread Standards Comparison
| Thread type | Sizes / model selection | What to confirm |
|---|---|---|
| Metric | M12–M114 | Thread diameter and pitch; cable clamping range |

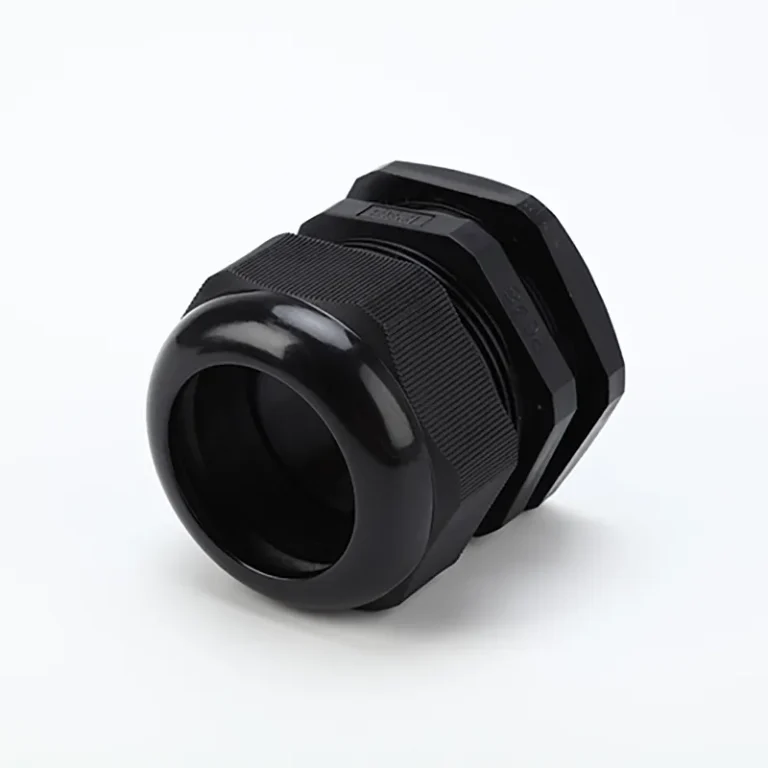

| PG | PG7–PG63 | PG designation and matching enclosure entry; the PG number is not a diameter in mm |

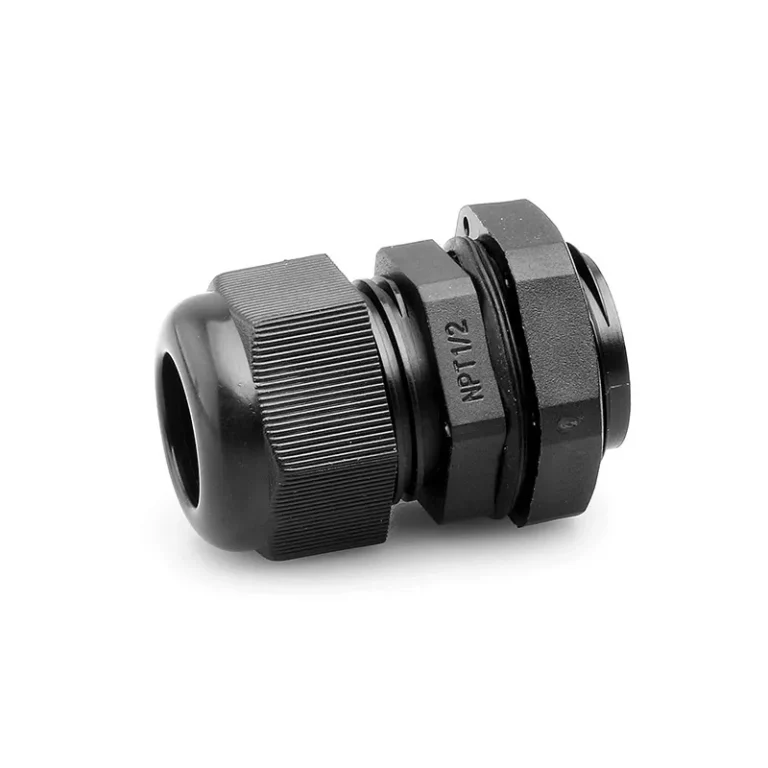

| NPT | See the NPT model chart | Nominal thread size, taper and installation requirements |
| BSP/G | See the BSP/G model chart | Parallel G thread size and sealing arrangement |
Standard PA66 nylon glands are IP55 without a flat gasket, or IP68 with the specified sealing washer and correct installation. Thread size and cable clamping range are separate measurements. Confirm the actual model drawing before ordering.
